This article walks through setting up logos that can displayed on products in the store. Logos are then available for the shopper to select, or upload their own, for all items in the store except those added via the Catalogs feature.
Article Sections
- Activate Logo Management
- Add a Logo
- Set Logo Permissions
- Additional Logo Setup Options
- Related Articles
Activate the Logo Management Feature

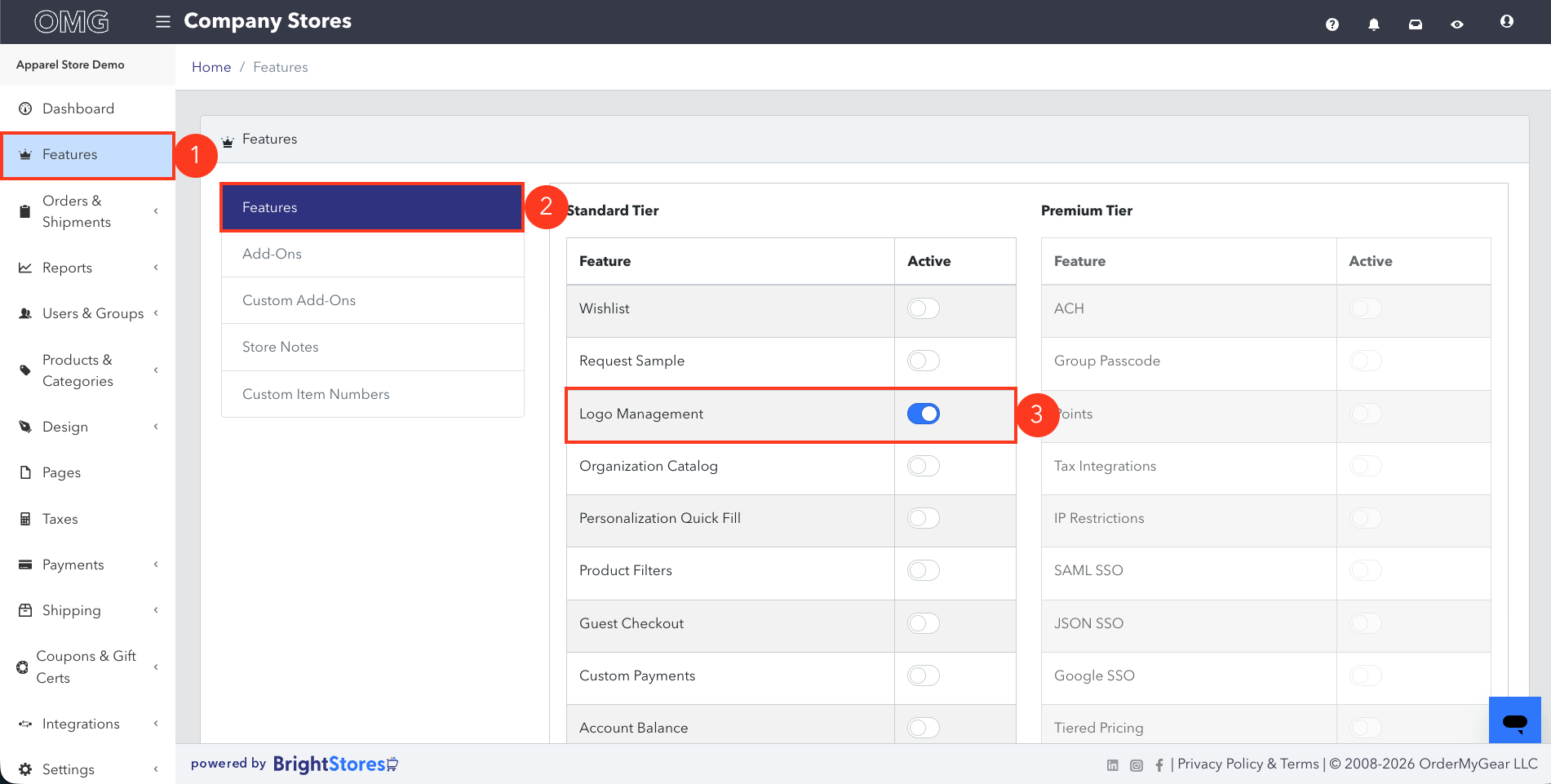

- Access the Features page.
- Click into the Features section.
- Toggle On the "Logo Management" option. Click "Close" or "Set Up Now" to continue.

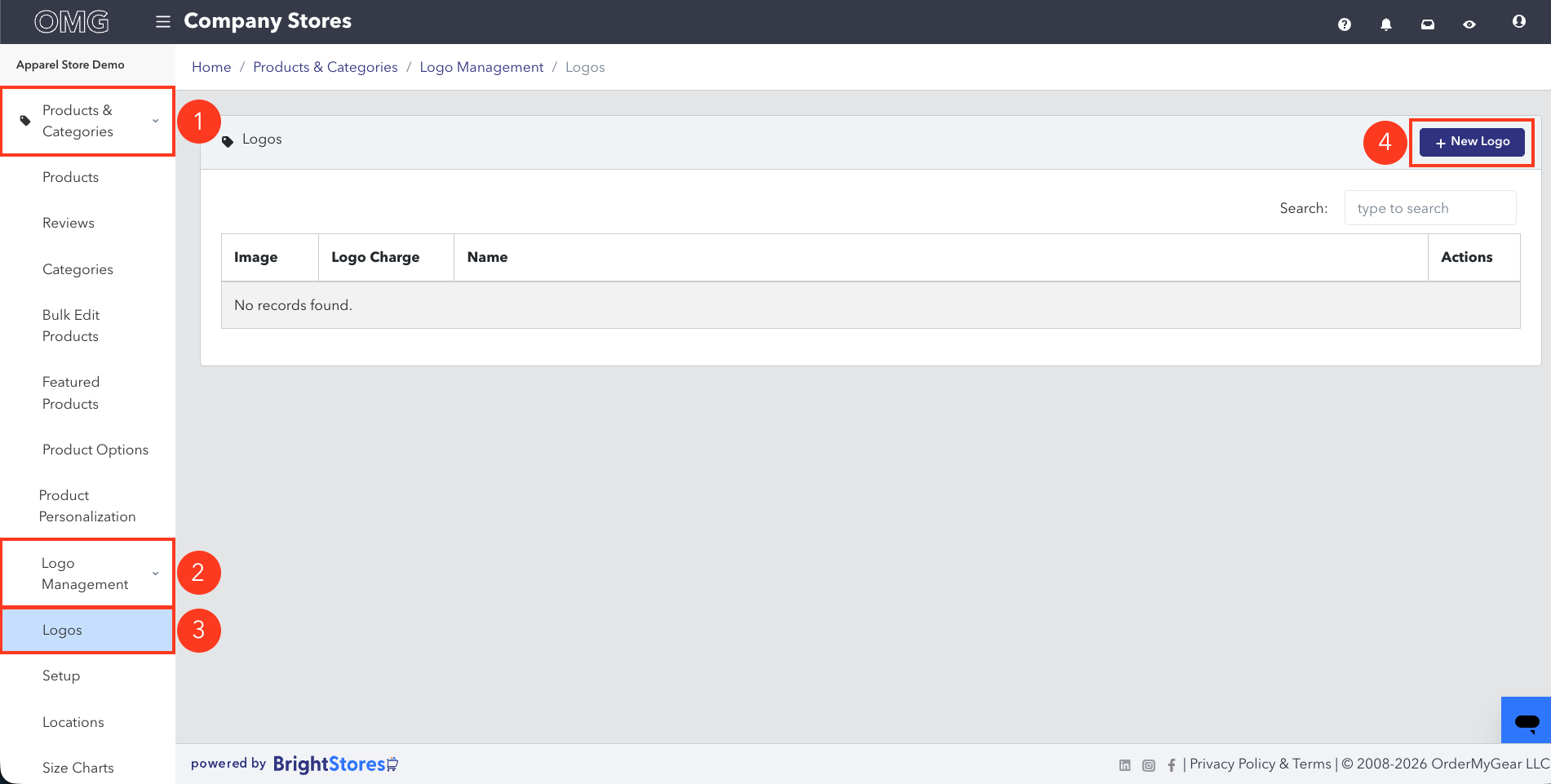

Add a Logo
- Access the Products & Categories Page.
- Click into the Logo Management section.
- Click into the Logos section.
- Click the "New Logo" button.

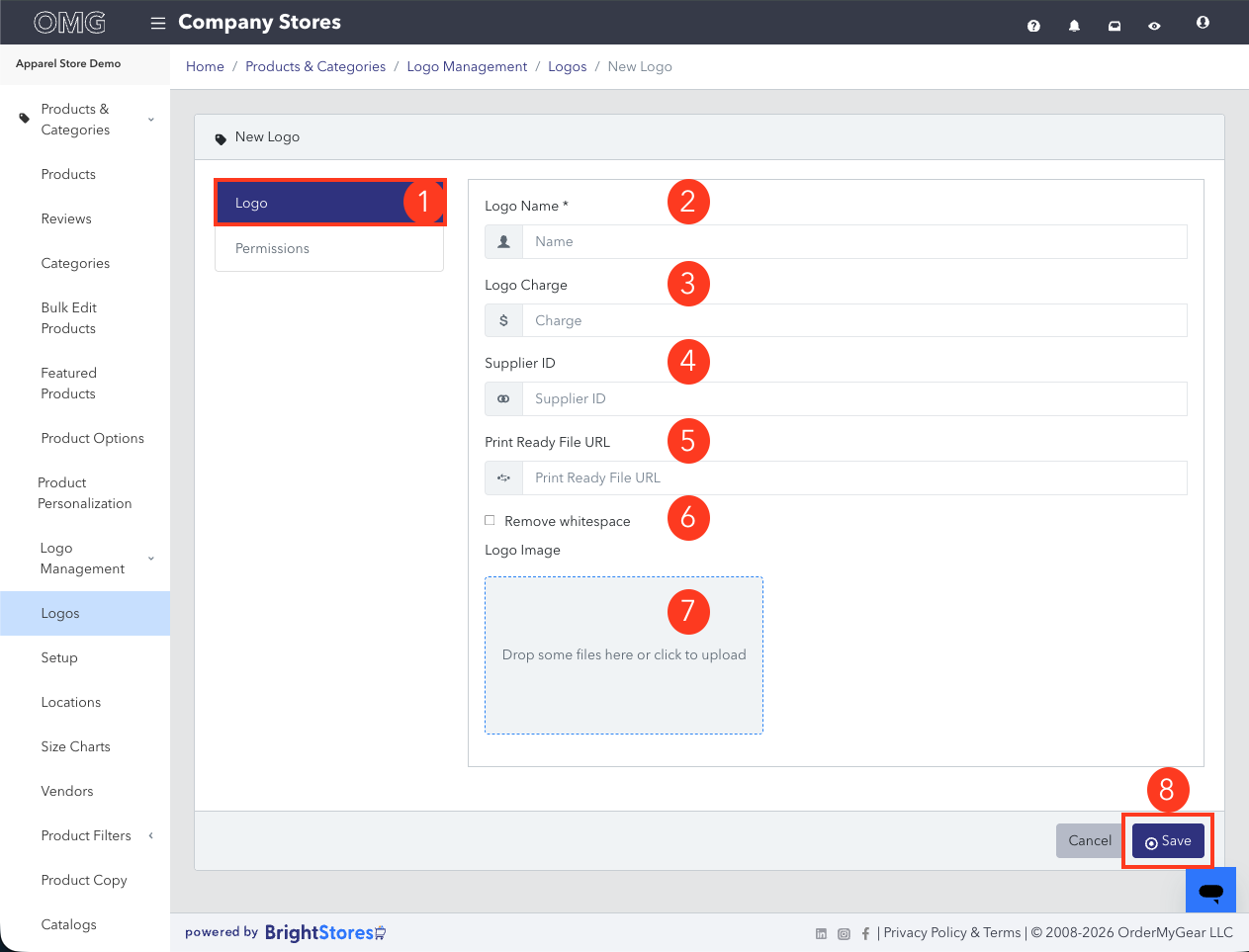

- Click into the Logo section.
- Logo Name - This name will appear on this logo on the storefront.
- Logo Charge - Add a charge for when the logo is selected, if needed.
- Supplier ID - Add the Suppliers ID to this logo.
- Print Ready File URL - When a print ready file associated with the logo is externally hosted, you can also enter the URL for that file here so it is included in the API call for fulfillment.
- Remove whitespace - When checked, any whitespace in the background of the logo will be removed.
- Logo image - Drag and drop or click the box to select the modified file from your system.
- Click "Save" to submit your changes.
If you need to use an editor to modify your logos, please see this tutorial.

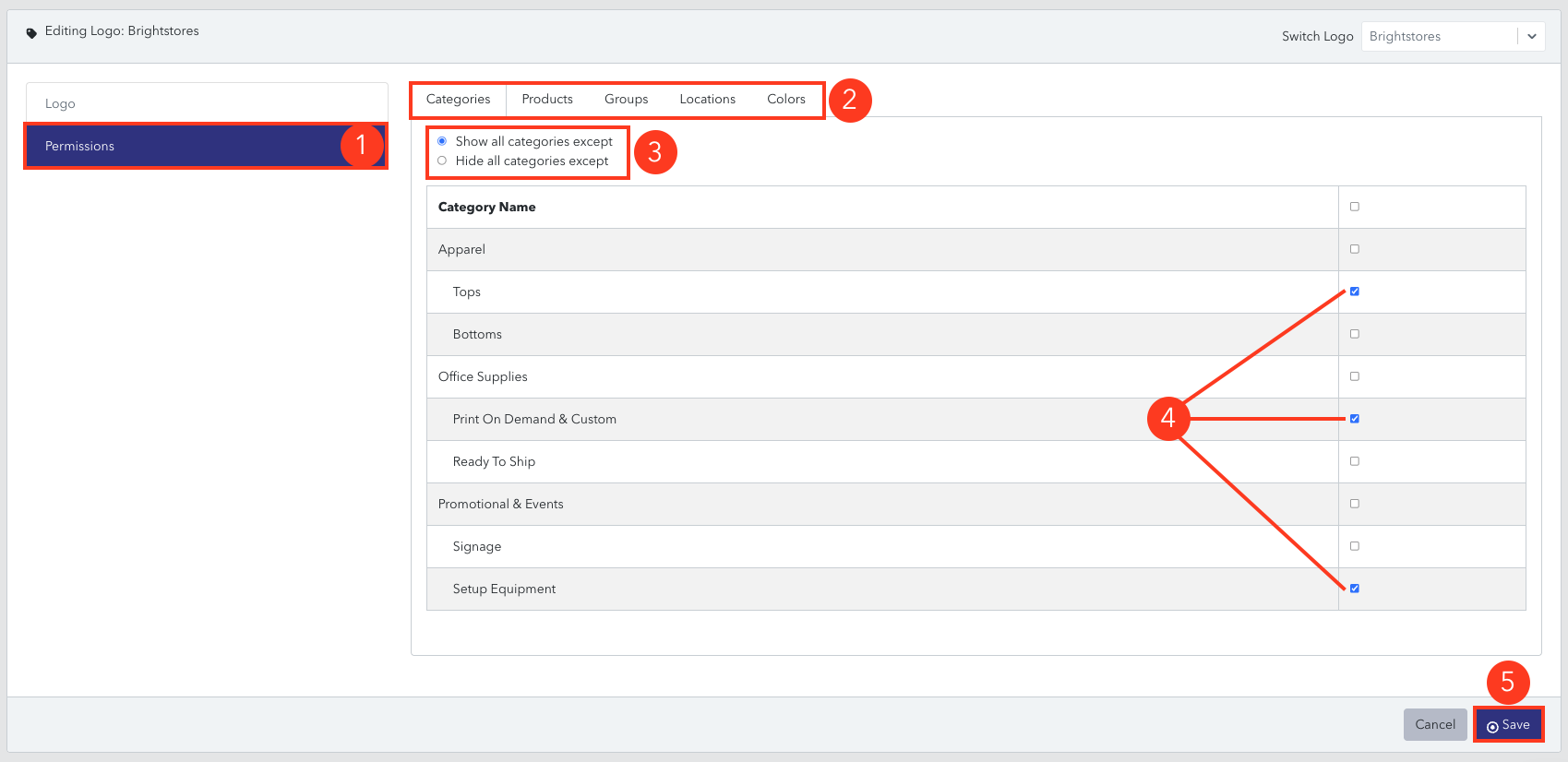

Set Logo Permissions
With Permissions enabled, the logos can be configured to show or be hidden based on Categories, Products, Groups, Logo Locations and/or Colors.
After clicking the pencil (edit) icon on the logo (not pictured here):
- Navigate to the Permissions section for that logo.
- Select the area to be configured. Logo Permissions are based on the Category, Products, User Groups, Logo Locations, and Colors.
- Select one of the following:
- Show all except - This option will show all of the options except those checked.
- Hide all except - This option will hide all of the options except those checked.
- Check the exceptions. In this example, all categories of products will display this logo except the Tops, Print On Demand & Custom, and Setup Equipment categories.
- Click "Save" to apply your changes.
Note: Logo Permissions for Colors will only show sub-options if the Product Option is set to be a "Color." Additionally, all product options must be not configured to allow "multiple quantity" otherwise the Color permissions for logos will be bypassed.

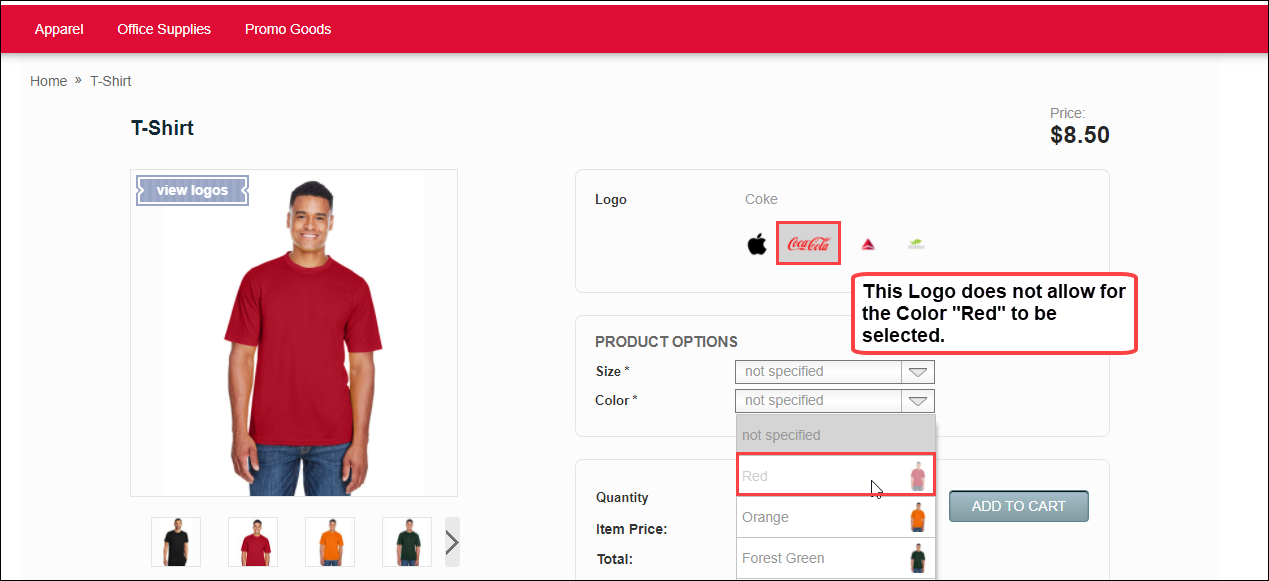

For the Legacy Templates: When using Logo Permissions for Colors, if you have a template from 11/03/2021 or later, then after the shopper chooses a Logo, certain colors will be "greyed out" indicating they can't be selected. The same occurs if they select a Color first, then disallowed logos will be "greyed out" indicating that logo can't be selected.
When using Logo Permissions for Colors, if you have a template from before 11/03/2021, and if a shopper chooses a logo and color combination NOT allowed, they will receive an error.

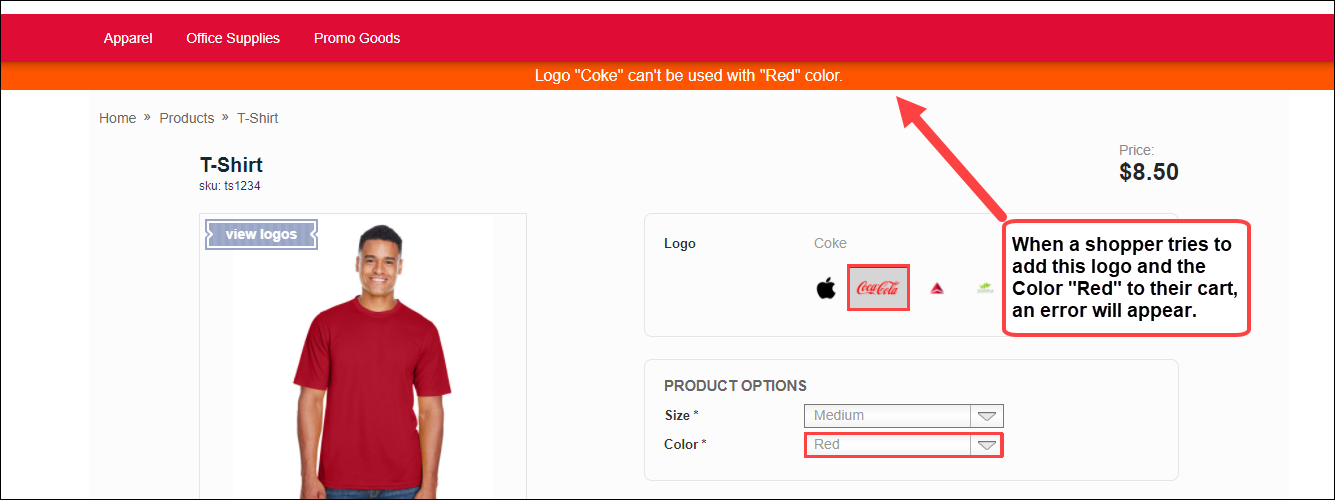

For the New Template: If the user selects a logo/color combination that is not allowed, an error message will be displayed in the top right corner. Example below.

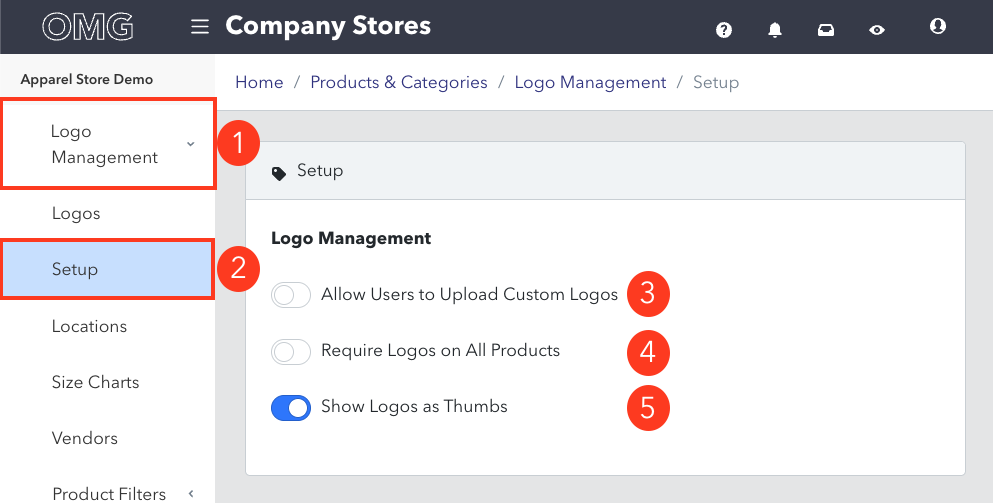

Additional Logo Setup Options
Use these settings to configure all logos, as needed.
- Navigate to the Logo Management Page.
- Click into the Setup page.
-
Allow Users to Upload Custom Logos - When enabled, user can upload their own logos to products. Example below.
Note: At least one logo must be uploaded to the store Admin for this function to appear for shoppers on the storefront. - Require Logos on all Products - When enabled, the user must select a logo on the configured products. When disabled here, you can still require it at an individual product level. Example below.
- Show Logos as Thumbs - When enabled, the logos appear as thumbnail images on the product page. When disabled, logo appear in a drop down list. Example below.

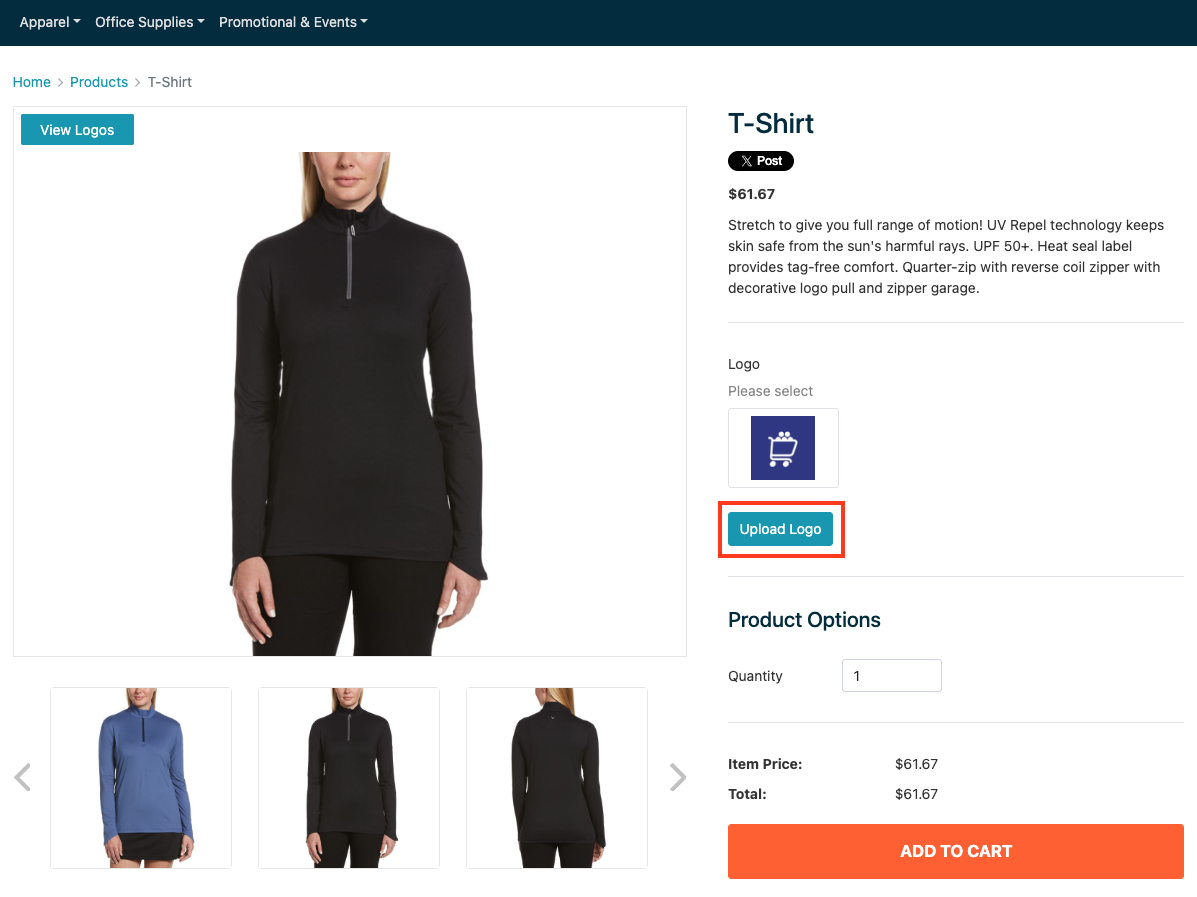

Users Uploading their custom Logo on Products
When the setting to Allow User to Upload Custom Logos is turned on in Logo Management, this shows a new button for the shopper to utilize for adding their custom logo to a product. If you need instructions on how shoppers can upload their own logos for virtualization, please see this article.
Note: Shoppers must be a registered User and signed into the storefront to upload their logo as this saves the uploaded file to their User account for future use. For more on what file types are supported for uploads, please see this article.

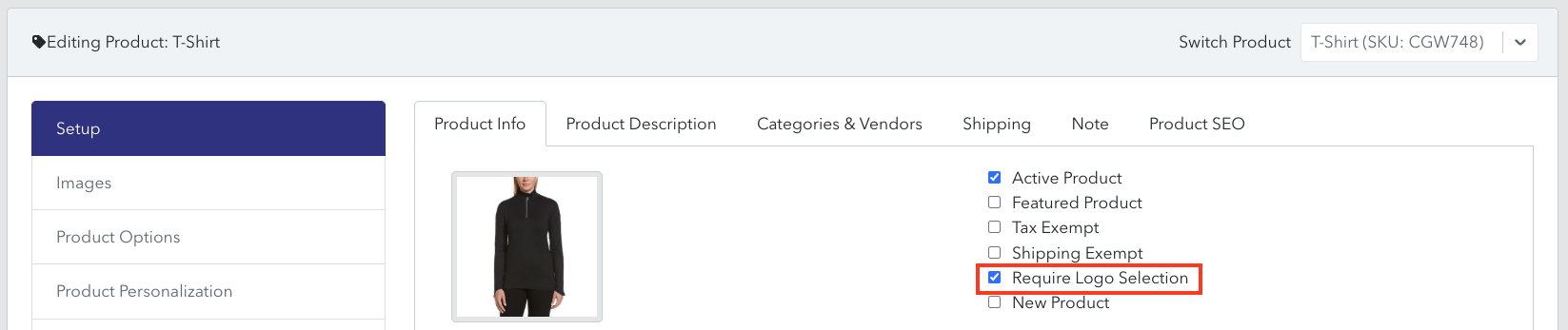

Require Logos on Individual Products
When the setting to Require Logos on all Products is turned off in Logo Management, logos can be required on individual products instead.

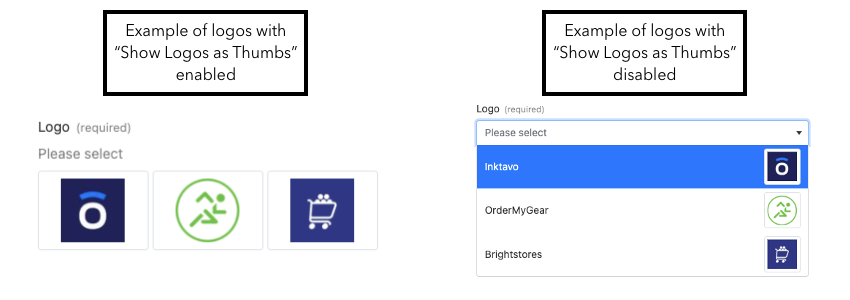

Show Logos as Thumbnails
When the setting to Show Logos as Thumbs is enabled, the logos appear as thumbnail images (left-hand example). With this setting turned off, the logos appear in a drop-down box (right-hand example).
